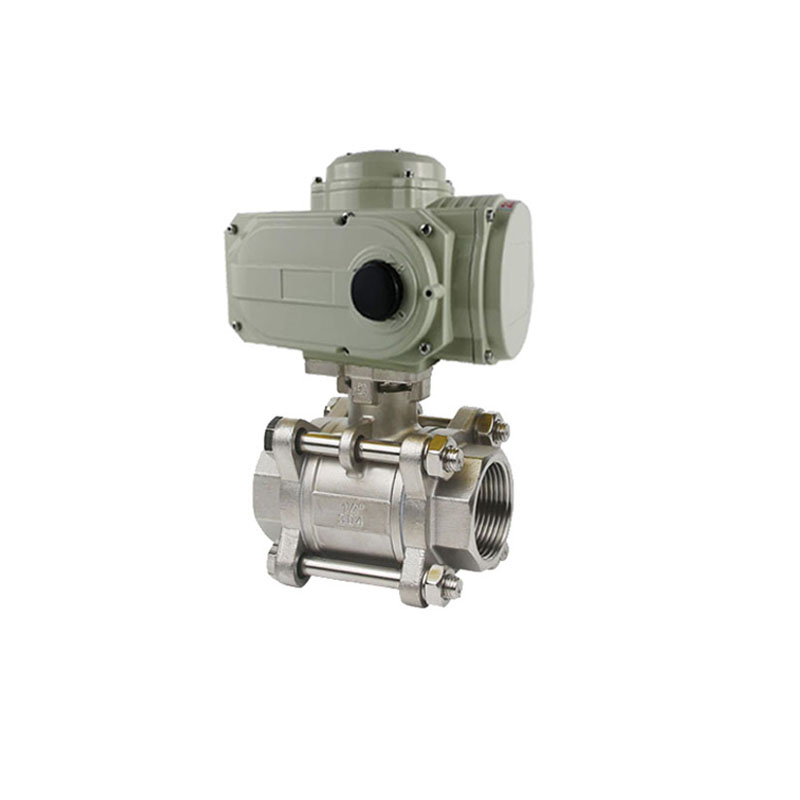

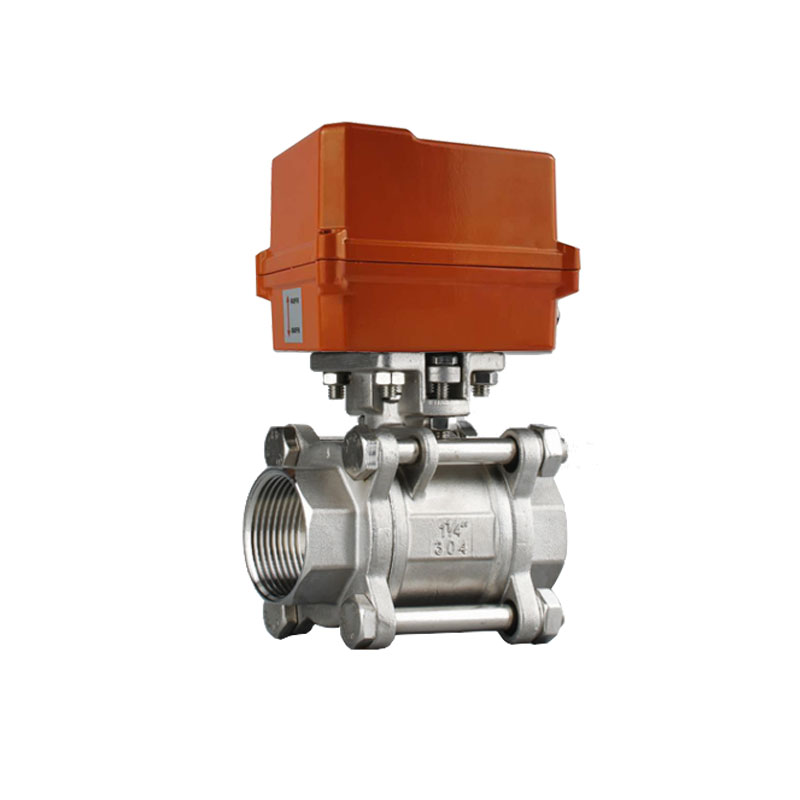

 Technical Data
Specifications
Optionals

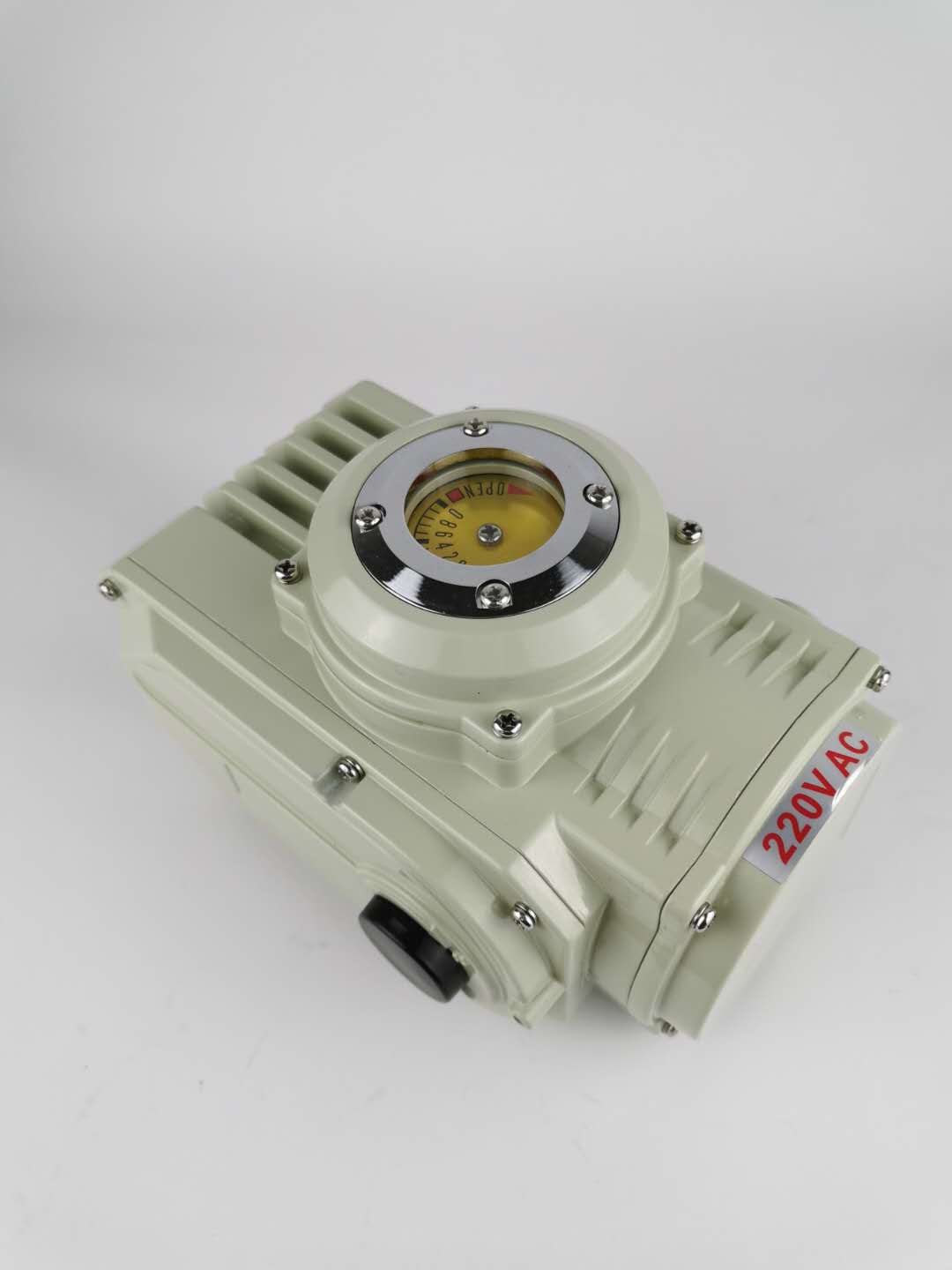

•  Quarter turn electric actuator
•  ON/OFF Type
•  Actuator working angle 90°
•  Regulation Type
•  Working torques: 30Nm to 2000 Nm.
4444-20 mA modulating positioner
•  Cycle time: 10S-95S(see chart)
1111-5 VDC modulating positioner
•  Protection Class IP65 & IP67
0000-10 VDC modulating positioner
ee(explosion-proof: Exd Ⅱ BT4 IP67 optional)
•  Display unit
Voltage Options:
Typical Applications
•  AC220V,AC24V,AC110V
•  Ball valve: DN15-300
•  DC24V,DC12V,AC380V
•  Butterfly valve: DN50-600

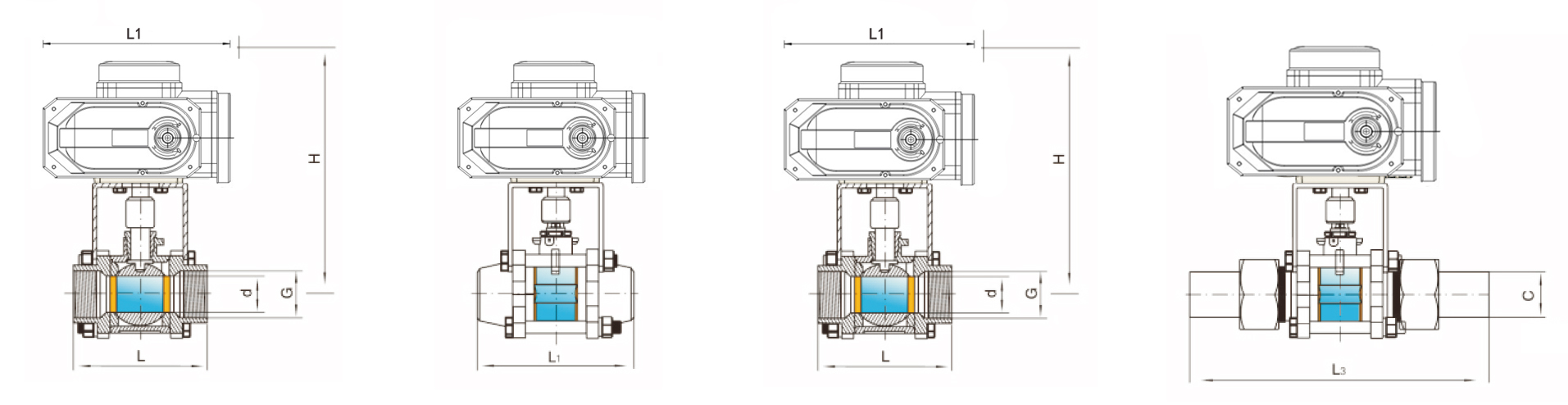

 Drawing and Dimensions
DN (mm)
in
d
L
G
L1
L2
D
L3
C
L0
H
Actuator
15
1/2
15
72
1/2"
70
100
34
170
21
178
159
05 Actuator
20
3/4
20
82
3/4"
85
110
50.5
185
26
178
167
05 Actuator
25
1
25
90
1"
95
120
50.5
200
31
178
172
05 Actuator
32
1-1/4
32
112
1-1/4"
110
131
50.5
225
38
210
210
10 Actuator
40
1-1/2
40
120
1-1/2"
201
95
50.5
260
46
210
218
10 Actuator
50
2
50
145
2"
209
108
65
300
60
210
248
15 Actuator
65
2-1/2
65
185
2-1/2"
242
120
77.5
380
80
309
273
30 Actuator
80
3
80
210
3"
275
132
91
480
105
309
313
30 Actuator
ON/OFF Electric Actuators
Model
03
05
10
15
30
60
100
200
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Modulating Electric Actuators
Model
03E
05E
10E
15E
30E
60E
100E
200E
Torque NM
30Nm
50Nm
100Nm
150Nm
300Nm
600Nm
1000Nm
2000Nm
Actuator speed
15S/60S
25S/50S
10S/15S/30S/60S
30S/60S
95S
95S
Working current
0.25A
0.25A
0.48A
0.68A
0.8A
1.2A
2A
2A
Motor power
6W/F
10W/F
25W/F
30W/F
40W/F
90W/F
100W/F
120W/F
Voltage
AC220V,AC24V,AC110V,DC24V,DC12V,AC380V 1Ph/3Ph
Input signal
4-20mADC,1-5VDC,0-10VDC
Output signal
4-20mADC,0-10VDC

Eight wiring types are available:
A: with limit position switch style (standard)
B: with neutral position switch style ( passive contact)
C: with potentiometer style
D: both potentiometer and neutral position switch style
E: with control module style ( Modulating Applications)
F: DC motor control circuit style
G: Three-phase current 380V control circuits style
H: Three-phase current 380V, both neutral position switch and potentiometer style
Contact us for the most recent product and technical information.
