Manual butterfly valve

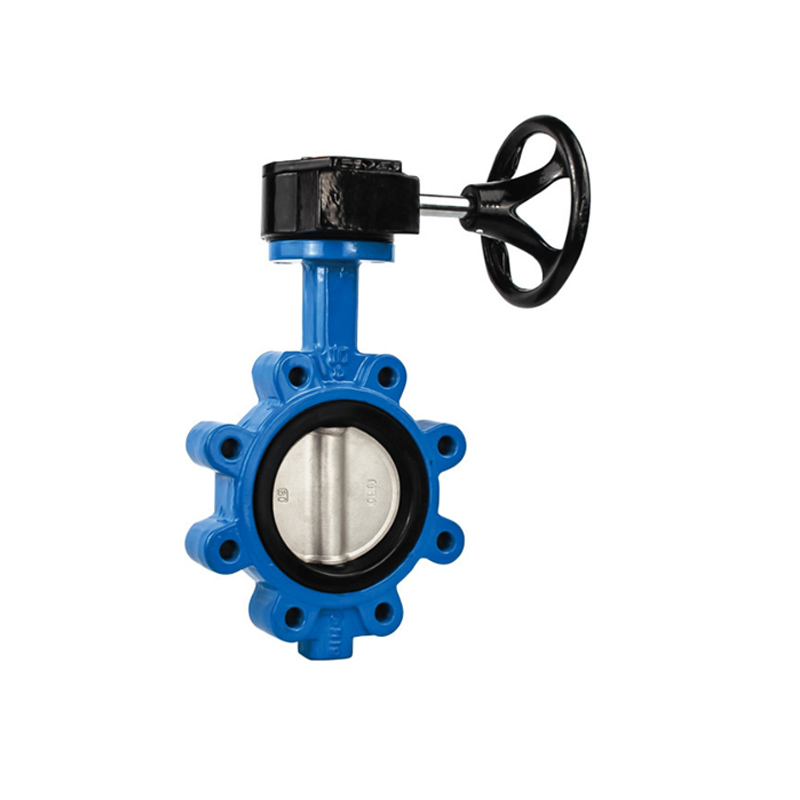

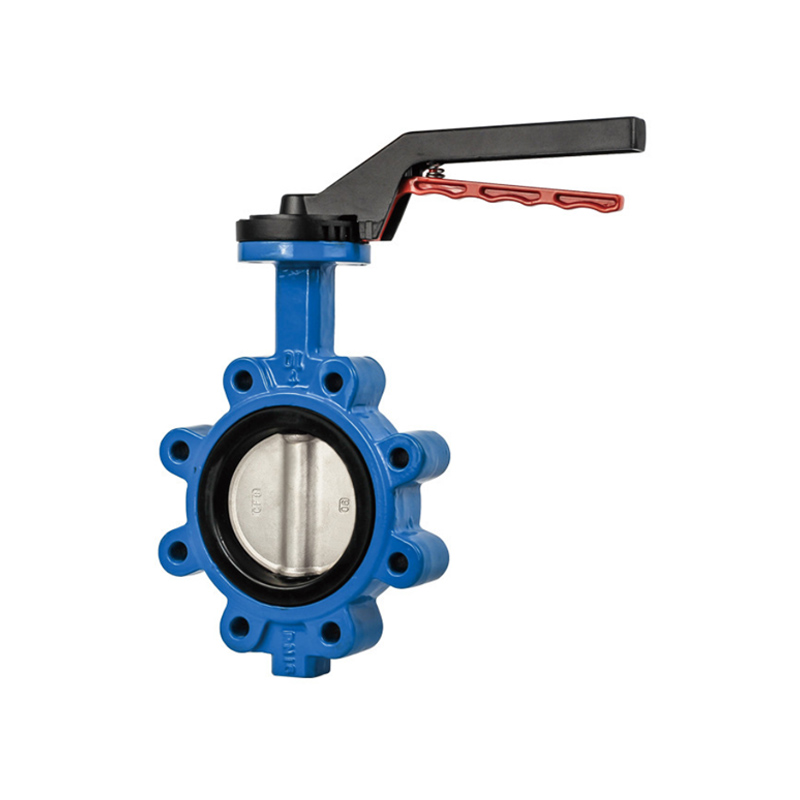

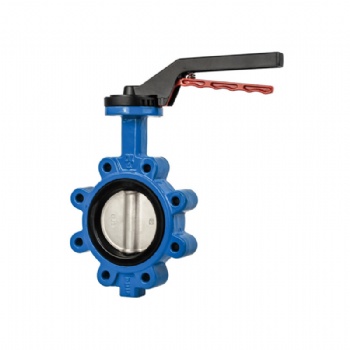

Lug type butterfly valve

EMAIL INQUIRY

Features

The lug type wafer butterfly valve is simple in structure, small in size and light in weight, and consists of only a few parts. The pressure drop produced by the valve is very small, so it has better flow control characteristics. The butterfly valve has two sealing types: elastic seal and metal seal.

Technical date and materials

Valve Body	Ductile Iron	SIZE	DN100-1200
valve disc	Ductile Iron	Working pressure	PN10/PN16
valve seat	Rubber	Medium	Water,Natural gas, Oil
Stem	SS

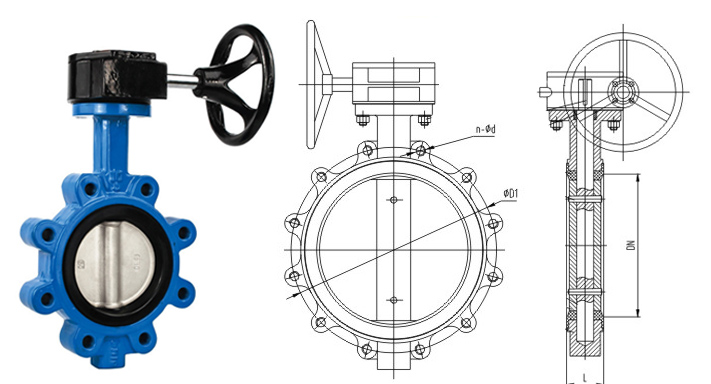

Dimensions(mm)

DN (mm)	SIZE	L	øD1	øD2	N-ød
100	4"	52	180	139	8-19
125	5"	56	210	160.5	8-19
150	6"	56	240	190	8-23
200	8"	60	295	240	8-23
250	10"	68	350	288.5	12-23
300	12"	78	400	346	12-23
350	14"	78	460	393	16-23
400	16"	102	515	450	16-27
450	18"	114	565	500	20-27
500	20"	127	620	555	20-27
600	24"	154	725	660	20-30
700	28"	165	840	760	24-30
800	32"	190	950	862	24-34
900	36"	203	1050	972	28-34
1000	40"	216	1160	1081	28-37
1200	48"	254	1380	1280	32-40
